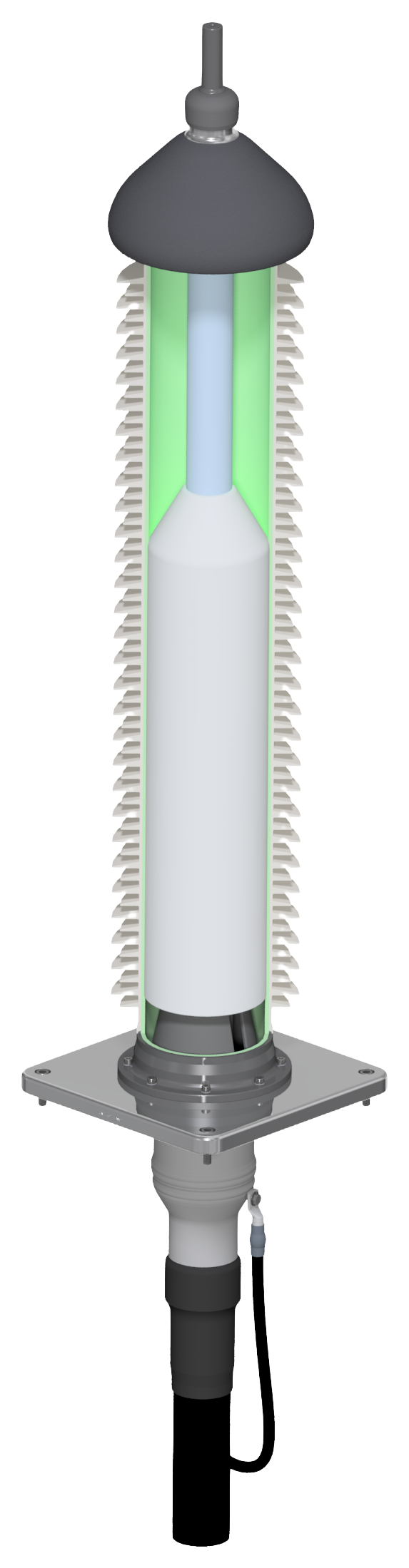

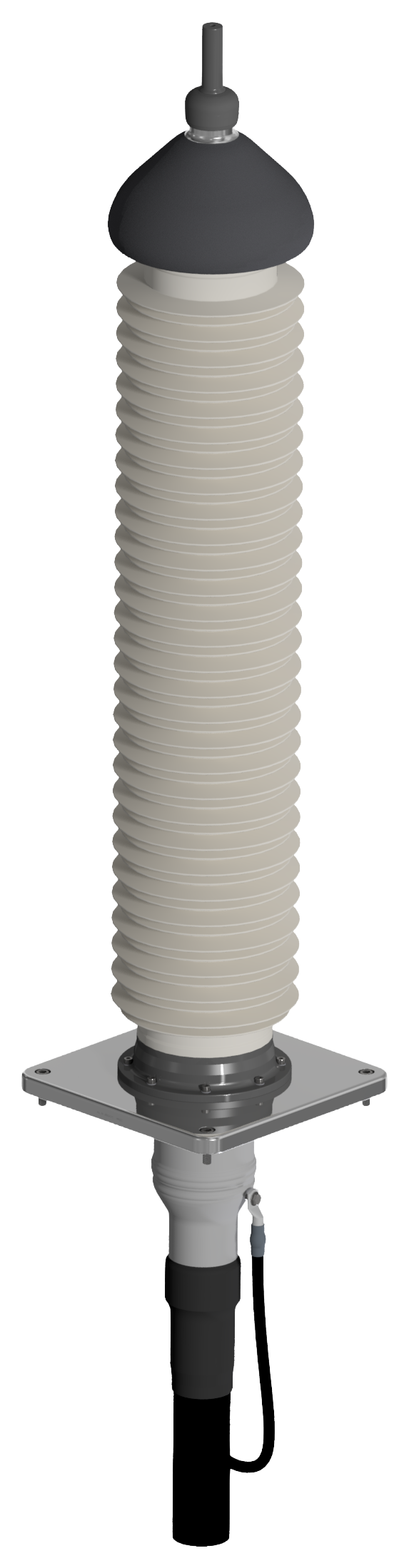

Outdoor Termination
FRD 170 kV
Factory pre-assembled dry-type termination engineered for reliable outdoor performance and simplified installation.
Why engineers choose FRD
Dry-type solution
No oil, gel or other filling media – for a clean, low-maintenance, installation-friendly solution with reduced environmental impact.
Outdoor durability
Designed for demanding outdoor environments, combining high resistance to UV, tracking and erosion with proven salt-fog performance.
Factory pre-assembled
Factory pre-assembly reduces on-site work and installation variability for faster, cleaner and more consistent installation.
Proven HV performance
Qualified in accordance with IEC 60840 for reliable high-voltage operation up to 170 kV.
Product Views
A closer look at FRD 170 kV

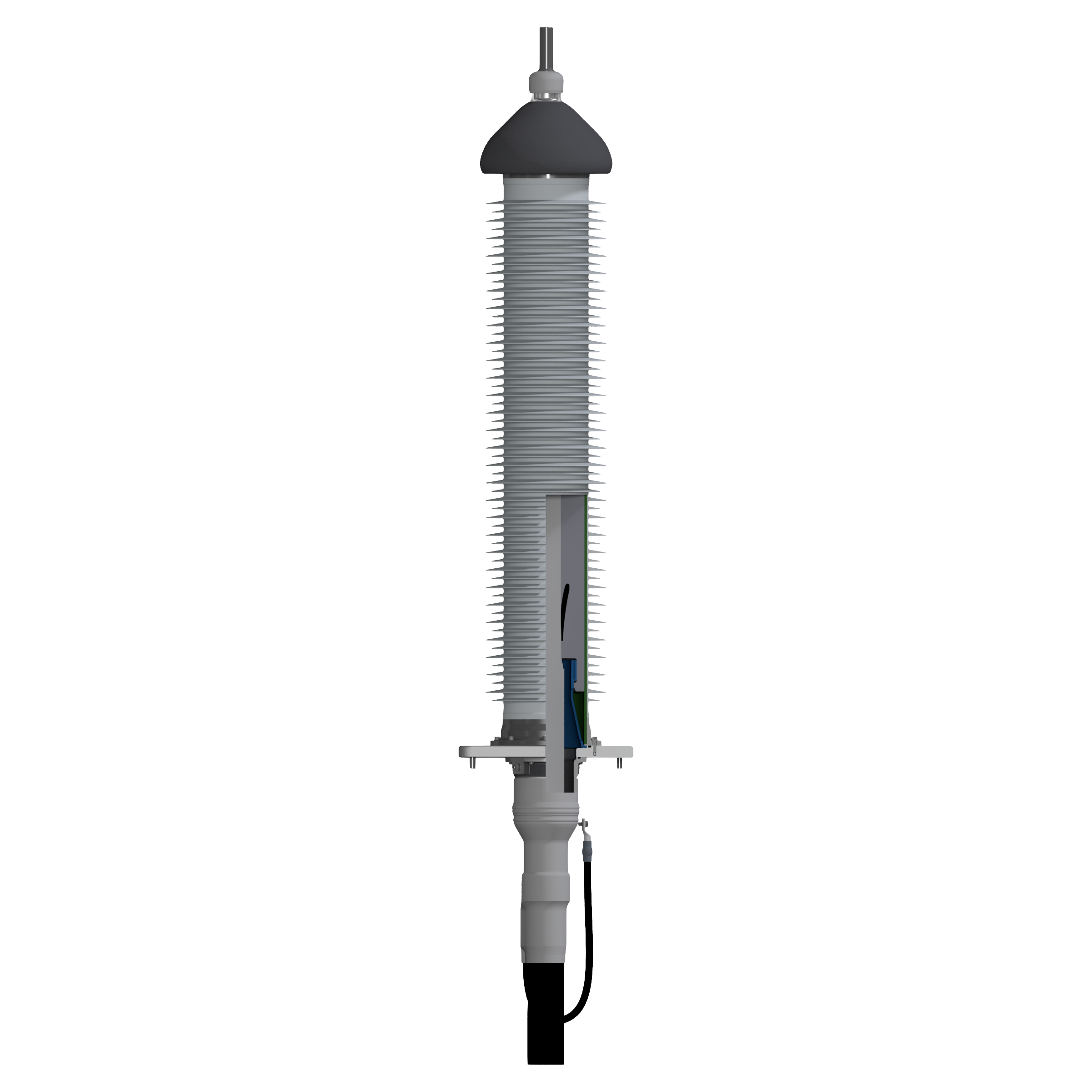

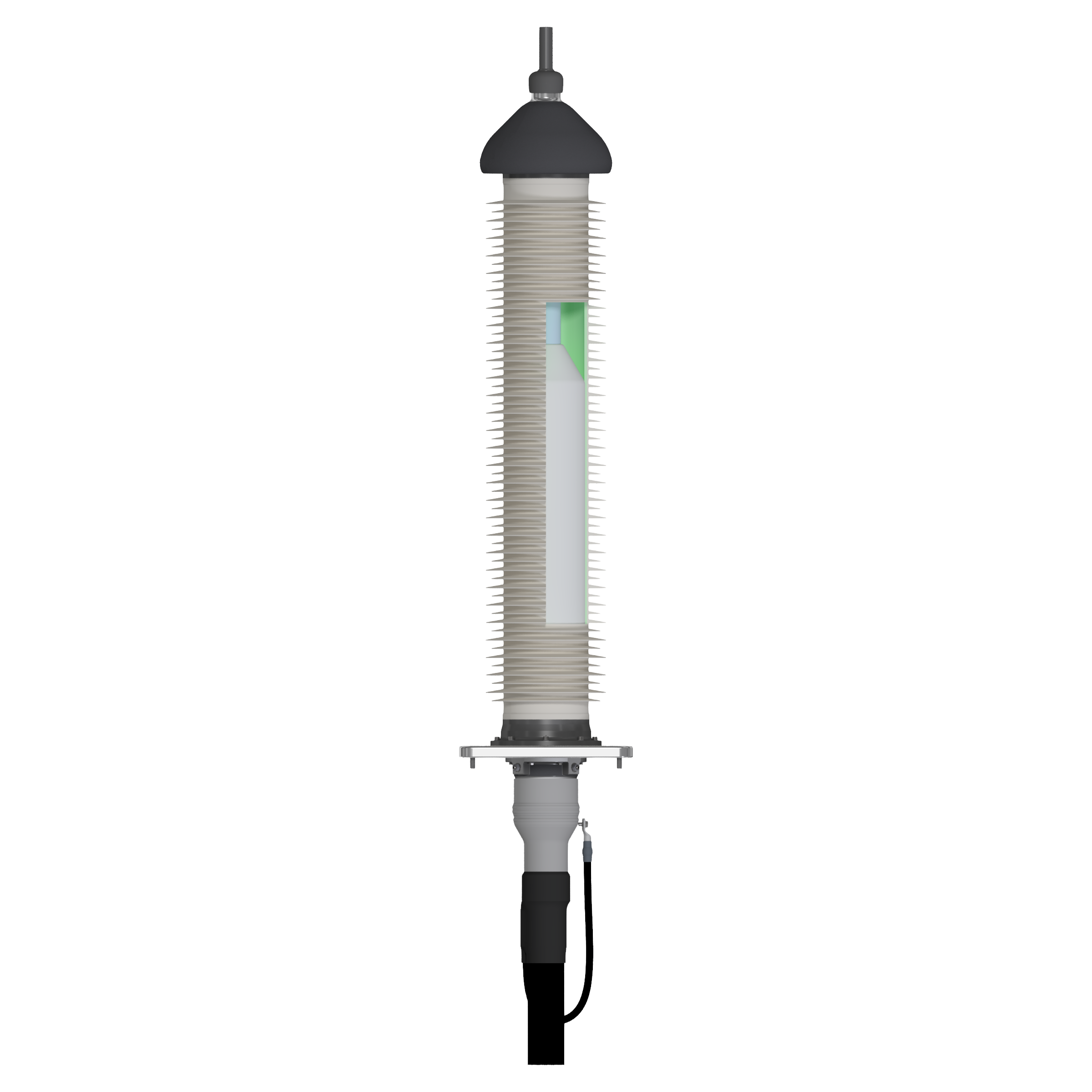

Composite insulator with silicone sheds
Designed for demanding outdoor conditions, with resistance to UV, tracking and erosion validated by salt-fog testing.

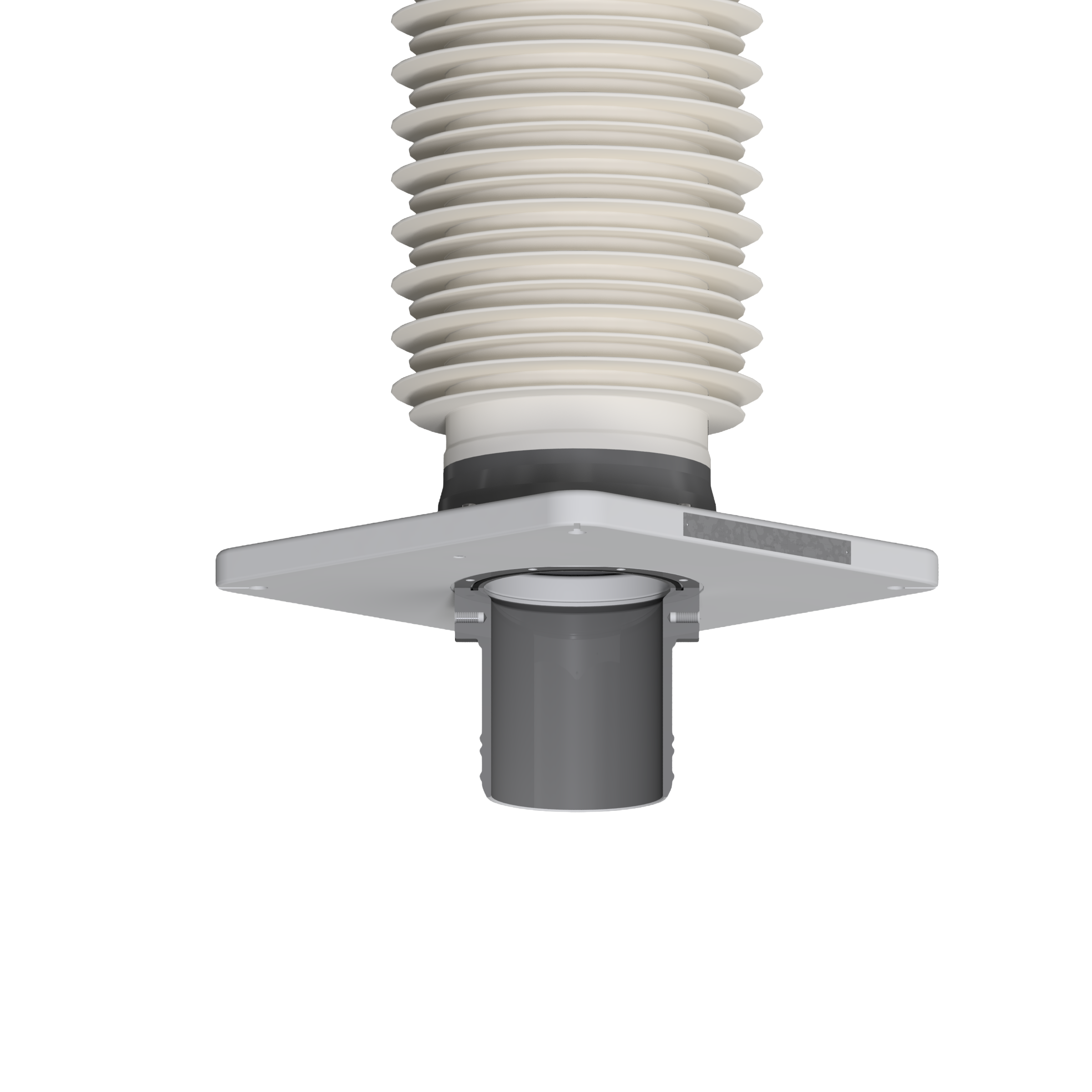

Base plate with cable entry
Stable mounting interface with a mechanically secured cable entry for reliable installation.

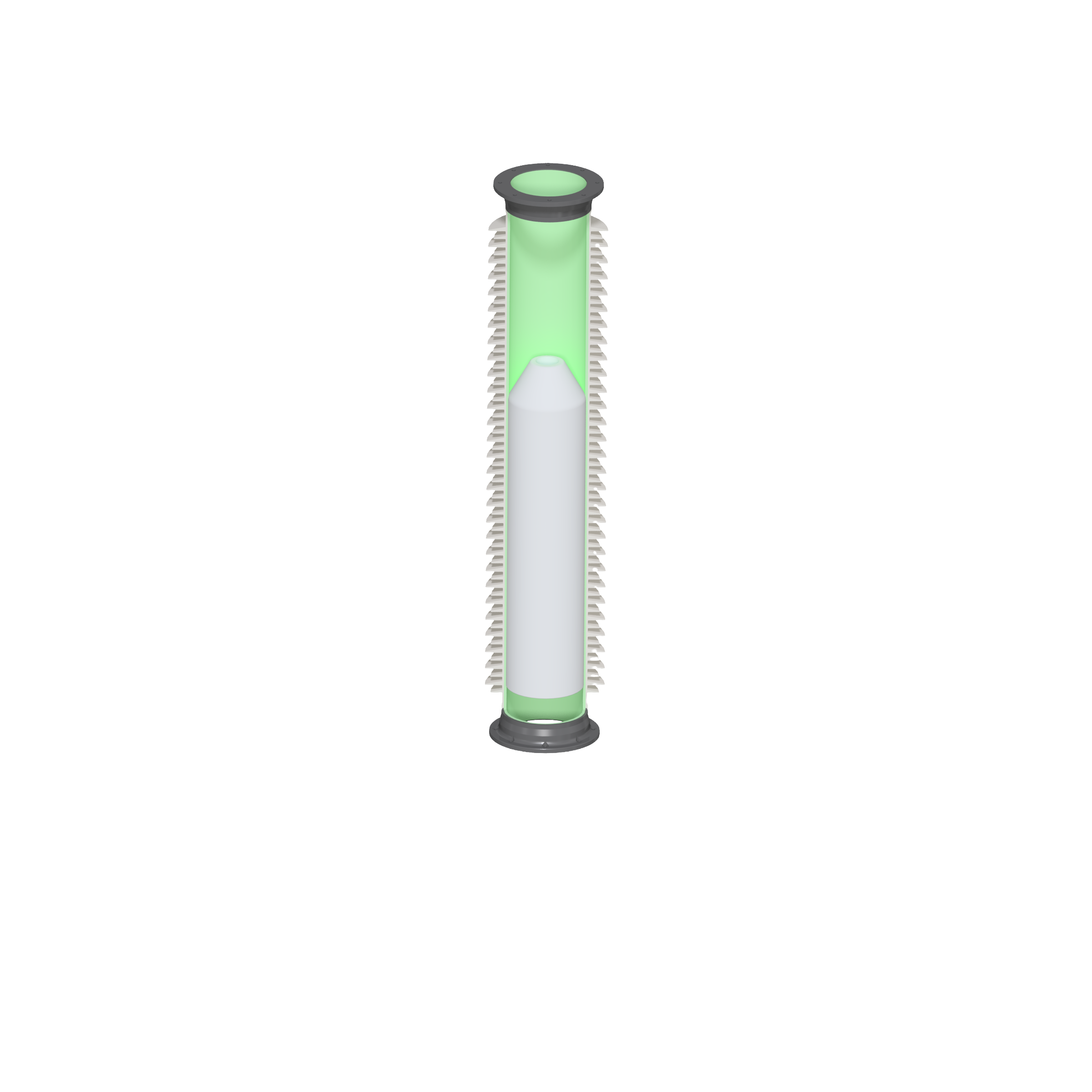

Factory pre-assembled dry-type design
Stress cone positioned under controlled factory conditions for consistent installation quality.
Technical Data
Technical snapshot
170kV
Highest Voltage (Um)
1600mm²
Max. Cross Section
60–86mm
Cable Insulation Ø
40kA, 1 sec
Short Circuit Screen
126kg
Weight
Product Highlights
Engineered for reliability
Reduced environmental impact
Dry-type design eliminates oil, gel and other filling media, supporting a cleaner and more sustainable solution.
IEC 60840 qualified
Type-tested and qualified in accordance with IEC 60840 for reliable operation up to 170 kV.
Certified installation
Installed by Brugg Cables certified personnel to ensure consistent and reliable installation quality.
Long service life
Robust insulation and durable materials are designed for reliable long-term outdoor operation.
Get in touch
Talk to a high-voltage specialist
Our engineers support you from product selection to installation planning.
